HLP Controls

8205 - Digital Manometer for Pressure (5psi/35kpa)

Regular price $431.50 AUD
Regular price Sale price $431.50 AUD

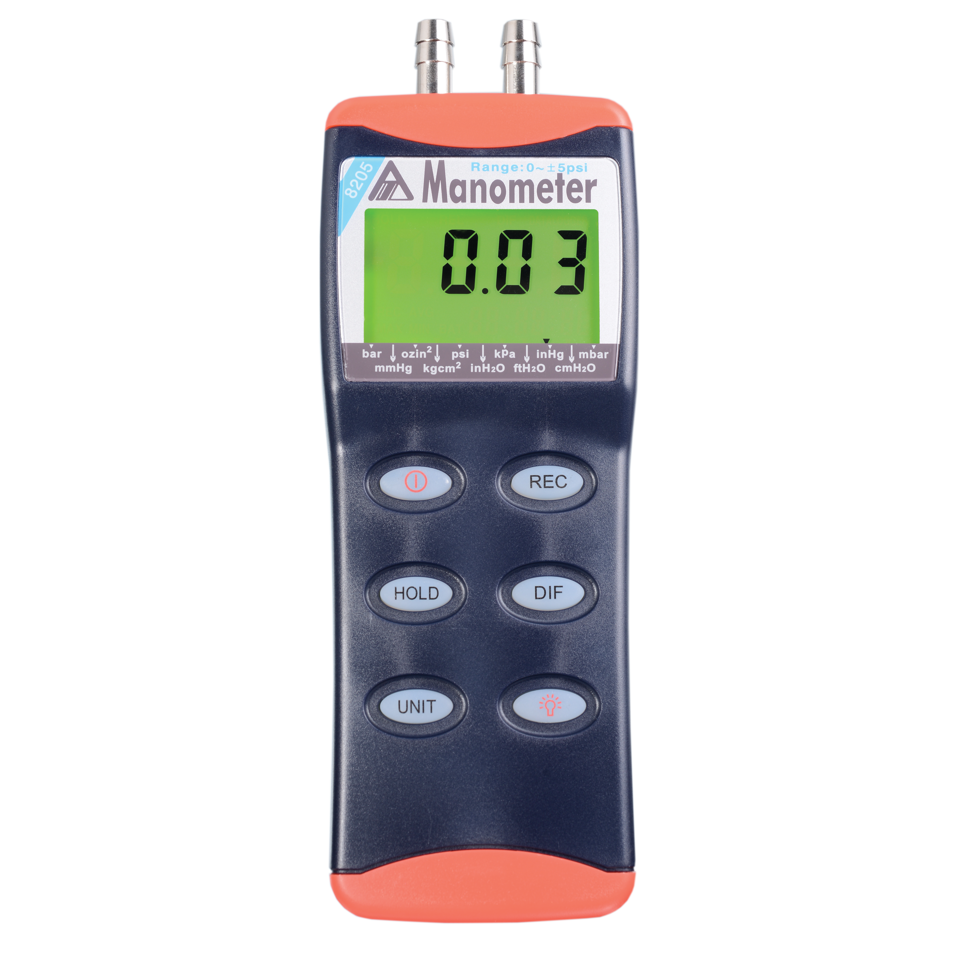

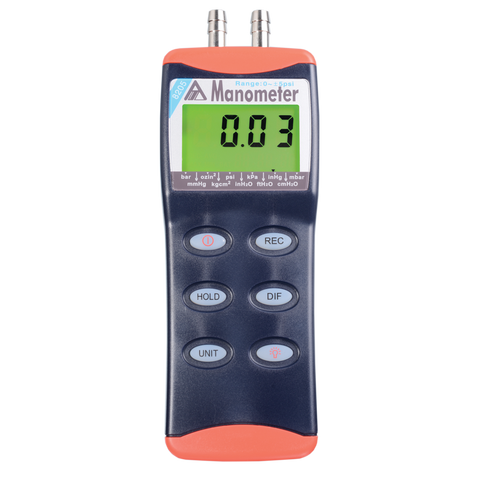

The 8205 Manometer is a Digital Display of Gauge or Differential Pressure. The convenient sized digital manometer is ideal for use on site or in the workshop.

Product Details:
  • Inbuilt ports for Positive and Vacuum pressures enable differential pressures to be directly displayed.
  • Automatic Zero Function.
  • Auto Power Off
  • Automatic Temperature Compensation between 0° to 50°c
  • 4 Digit Display
  • Interchangeable 11 Unit Display
  • Low Battery Indicator

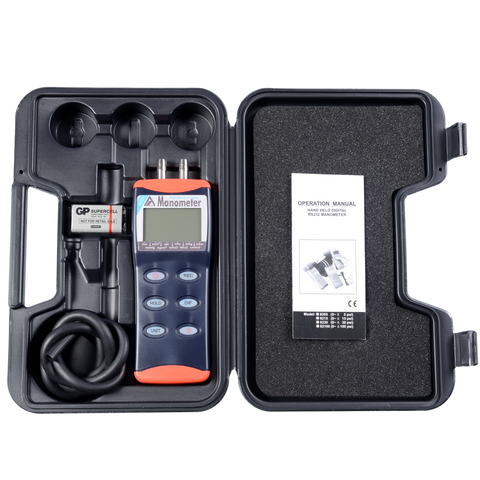

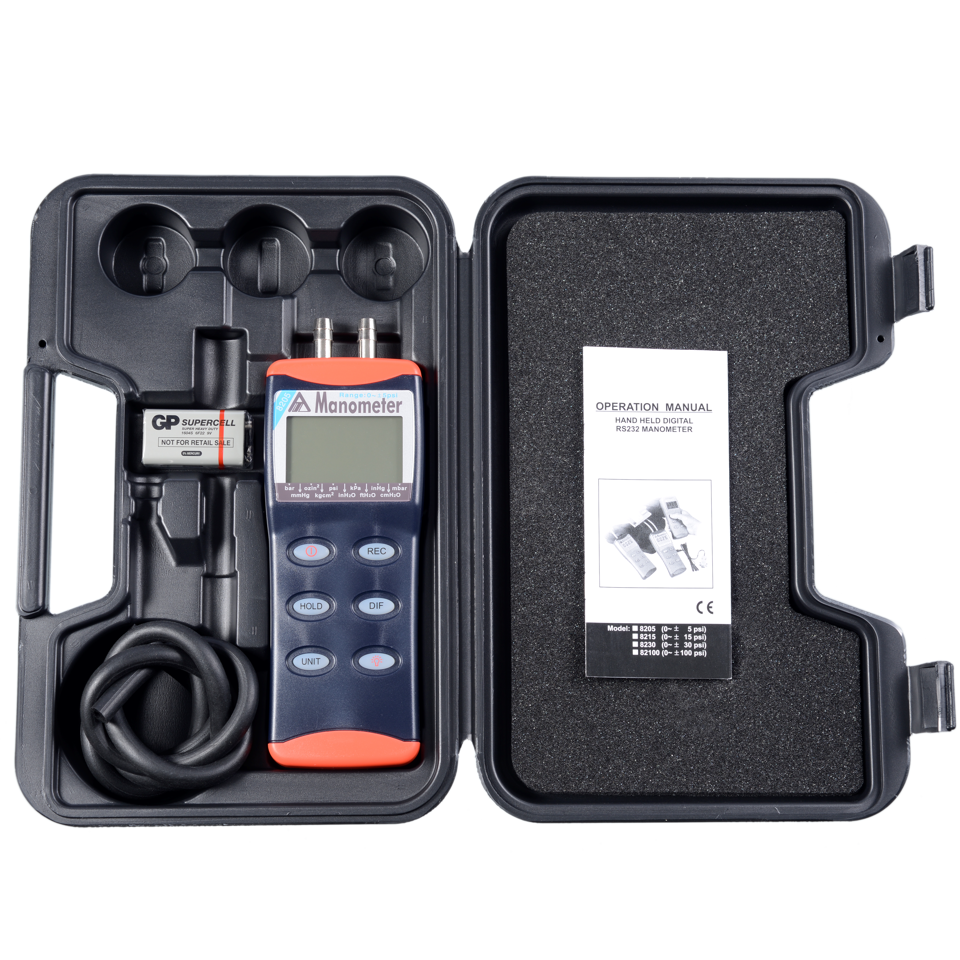

  • Comes with Hard Carry Case, Nylon Hoses
Product Specifications:
  • Pressure Range: 0 to 5psi (35kpa)
  • Metal Barb Fittings
  • 4mm High Pressure Nylon Hoses
  • Response Time: 0.5 seconds
  • Accuracy Level: ±0.3%
  • Minimum Resolution: 0.0004bar (0.4kpa or 0.1psi)
  • Selectable Units:
    • Bar
    • mmHG
    • ozin
    • KGcm
    • Psi
    • InH2O
    • Kpa
    • FtH2O
    • inHG
    • CmH2O
    • Mbar
  • 1 x Replaceable 9v Battery
  • Size of Unit : 182 x 72 x 30mm (Not including additional hardware)

Please Note:

  • Optional RS232 Interface & Software is available to perform data logging & recording functions (computer required).
