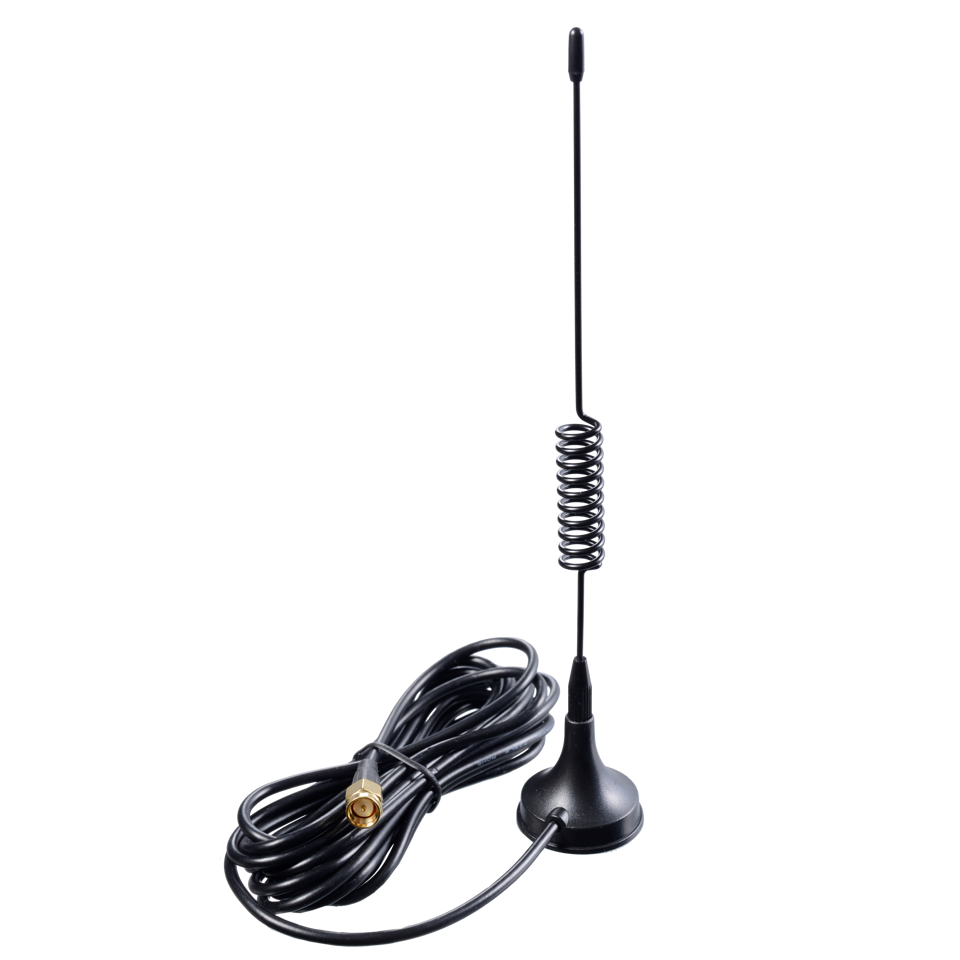

S272 - Remote 4G SMS Monitoring & Alarming Unit (Relay Out, Digital & Analog In) w/ Temp & Humidity Sensor

Regular price $778.00 AUD
Regular price Sale price $778.00 AUD
Product Details:
  • 3G/4G SMS Alarm with 6 Analog, 8 Digital Inputs and 4 Relay out and 1 Temp + RH input with supplied ext sensor.
  • AC240 V power with backup battery for sending SMS if external power fails, External DC power 9 to 36 V supply for mobile applications.
  • Includes a free app for your phone to control and monitor remotely from any mobile.
  • Monitors temperature, humidity and analog inputs and compares the levels to your set points and sends an SMS to mobiles if anything is outside these limits.
  • Also monitors contacts with Digital inputs for activation (like alarm , flood, gates, thermal cutouts etc) and sends a SMS message when activated.
  • RS232 and RS485 interface Connect to Modbus i/o
  • Includes a Data logger of all inputs
  • Complete with PC setup software, usb cable, and a no monthly charge SIM card ( $0.15 SMS) for you to activate.
  • 10 telephone numbers for SMS Alert and Dial all or as specified when alarmed.
  • Suitable for all Australian phone networks. (our supplied SIM is on OPTUS)
  • 2 power outputs for transducers or detectors or sensors
  • Analog inputs can be used as another 6 contact inputs
  • Can be configured for addtitional PT100 temps, pressure, flow etc

Product Specifications:

  • 1x Temp + RH input, 8 x Digital switch inputs , 6 x Analog inputs (4-20mA,0-20 mA, 0-5VDC) and 4 x Relay (AC240 V 5 A) outputs
  • Metal enclosure for mounting
  • Includes all parts required
  • 12 Bit accuracy on the analog inputs
  • Has 4 relay outputs for control
  • Easy to program and setup or HLP will setup for you upon request
  • Small package size 202mm*113mm*31mm(external maximum size)
  • Hi-gain antennas available as an option SMA connection
  • Plug in connectors for ease of use
